Welcome to Gail Pumps.com. . . your source on the net for high pressure pumps!



Pumps
Gail Industries high pressure water pumps are known for their low maintenance and long life. Always in operation when you need it. Anticipate seal and valve replacement without a tear down. Gail pumps are an excellent return on your investment.





Models 6 and 10
Features:
  • Total lubrication
  • Self-cleaning, spherical,hydraulic, interchangeable valves
  • Visible water seals
  • No moving parts on the plunger
  • Ease of inspection during operation
  • Optional stainless steel fluid end

  Model 6:
1-8 G.P.M
HP 15 Electric
Model 10:
1-12 G.P.M
HP 25 Electric

For detail specifications on this pump, click here

Return to Top

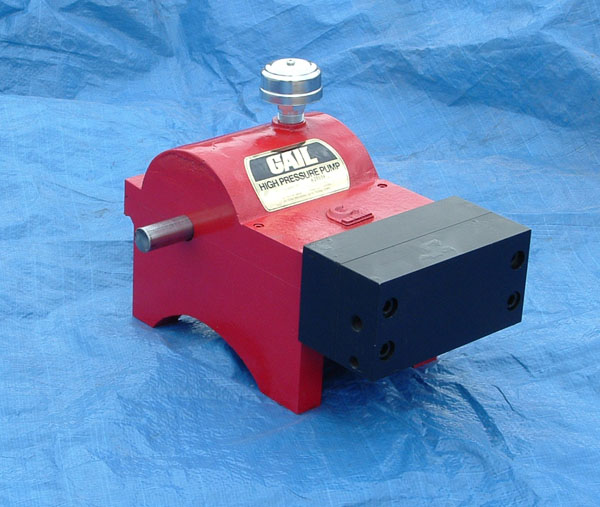

Models 12


Click image to enlarge

Features:

  • Max 25 HP
  • 500 - 30,000 PST
  • Roller Bearing Crankcase
  • 10 year Warranty on Crankcase



For detail specifications on this pump, click here

Return to Top


Models 15

Features:

  • Max 25 HP
  • 500 - 30,000 PST
  • Rod Load: 15,000 Lbs
  • 8 Roller Bearings in the Crank Case
  • Weighs 300 Lbs
  • Lightest Weight Hi-Pressure Pump In the Market.

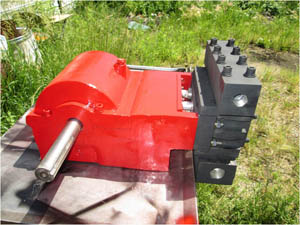

Model 15

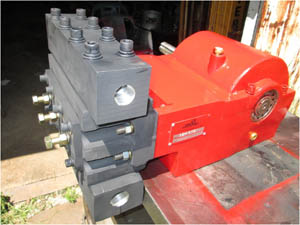

Model 15
For detail specifications on this pump, click here

Return to Top


Model 20

Return to Top

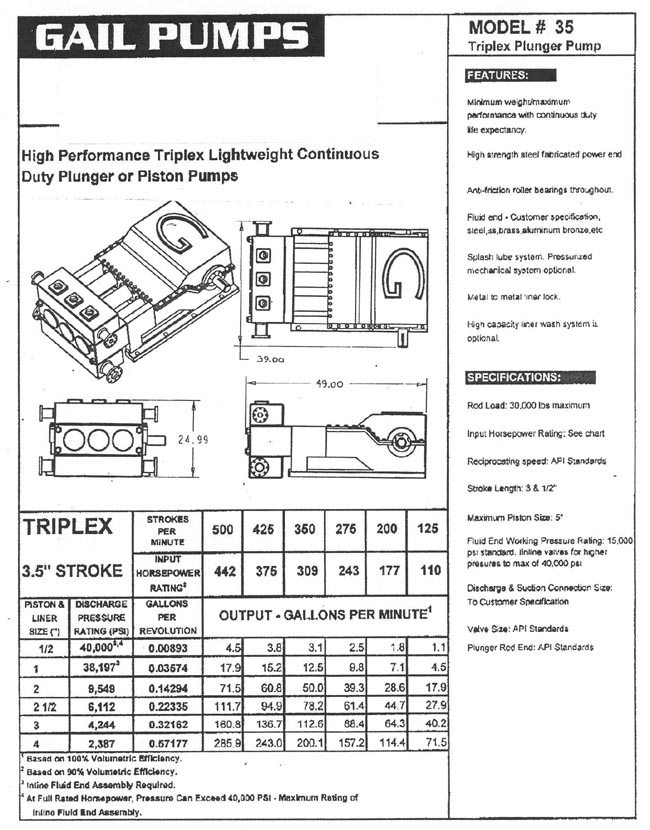

Model 35

Return to Top

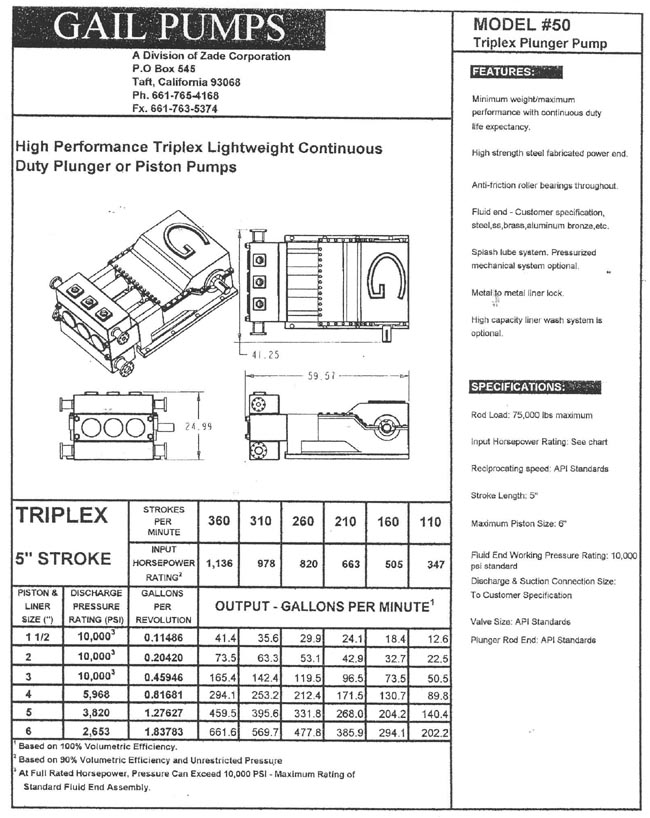

Model 50

Return to Top

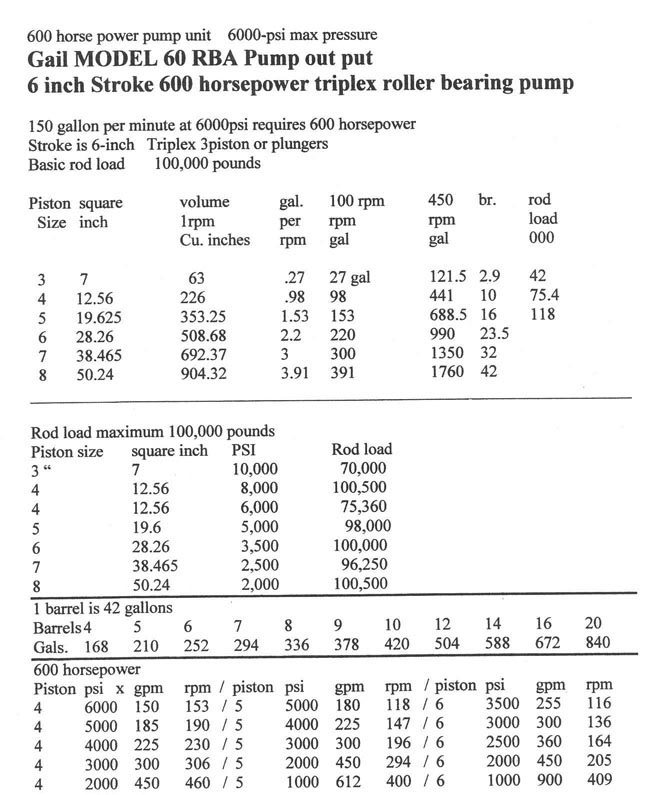

Model 60

Return to Top



Model 80

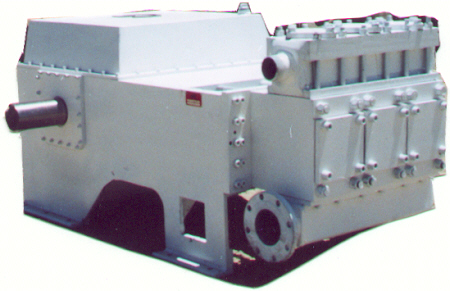

Gail Model 80 pump.

GAIL - G-80

8" Stroke Pump
100,000lb Rod Load
2" to 6" pistons or plungers
What pressure do you want?
Inlet and discharge to customers spec

Size: Length - 74", Height - 35", Shaft - 4.750X8" long, Weight - 5,750lbs.
Transport by helicopter or truck

Return to Top
